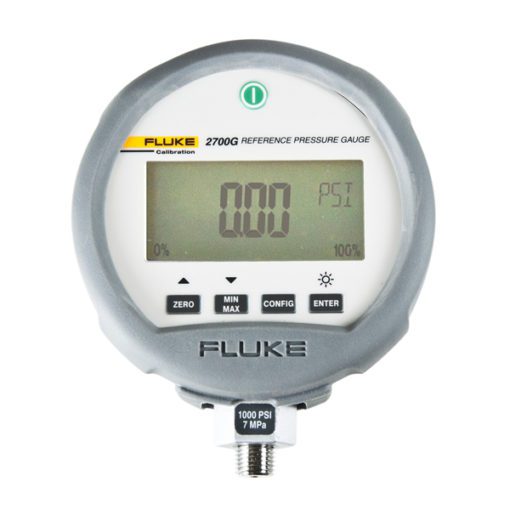

2700G Series Reference Pressure Gauges

Easy to use, rugged and reliable construction with precision pressure measurement from 15 psi/ 1 bar to 10,000 psi/690 bar and 0.05% accuracy.

The 2700G Reference Pressure Gauges provide best-in-class measurement performance in a rugged, easy-to-use, economical package. Improved measurement accuracy allows it to be used for a wide variety of applications. It is ideal for calibrating pressure measurement devices such as pressure gauges, transmitters, transducers, and switches. In addition, it can be used as a check standard or to provide process measurements with data logging.

  • Precision pressure measurement from 100 kPa (15 psi, 1 bar) to 70 MPa (10 000 psi, 700 bar)
  • Accuracy to 0.02% of full scale
  • Easy-to-use, rugged construction for reliable performance
  • Combine with the 700PTPK or 700HTPK pump kits for a complete portable pressure testing solution for up to 600 psi with the PTP-1 pneumatic pump and up to 10 000 psi with the HTP-2 hydraulic pump
  • Combine with the P5510, P5513, P5514, or P5515 Comparison Test Pumps for a complete bench top pressure calibration solution
  • Test port is 1/4 NPT Male. 1/4 BSP and M20 X 1.5 adaptors are included standard
  • USB communications cable and universal power supply provided standard
  • Can be used with COMPASS® for Pressure software for automated recording of pressure calibration data

The 2700G has an easy-to-use interface that allows you to configure the sampling rate, tare value, damping, and auto-off time interval as well as reset the min/max pressure. You can also view the remaining battery life. Select from 21 different standard engineering units, including bar, in H2O, kPa, MPa, and psi. In addition, the supervisor menu can be used to set one custom engineering unit. To ensure against incorrect measurements, each of the above functions can be locked from use through the supervisor menu.

The 2700G Reference Pressure Gauge can be combined with the Fluke Calibration P5500 series of comparison test pumps to make a complete pressure calibration system. The unique test port design of the P5500 series allows for hand tight connection of the 2700G without the use of PTFE tape.

Use the 2700G with these pressure comparators for a complete bench top pressure calibration solution

P5510 Pneumatic Pressure Comparator

  • Pressure range: 0 to 2 MPa (300 psi)
  • Vacuum range: 0 to 80 kPa (24 inHg)
  • 2700G and device under test (DUT) can be connected without the use of tools or PTFE tape
  • Built-in hand pump as pressure/vacuum source
  • High-quality needle valve for fine control

P5513 Pneumatic Pressure Comparator

  • Pressure range: 0 to 20 MPa (3000 psi)
  • High pressure pneumatic operation
  • Screw press for fine pressure adjustment
  • High quality needle valve for metering in supply pressure 2700G and DUT can be connected without the use of tools or PTFE tape

P5514 Hydraulic Pressure Comparator

  • Pressure range: 0 to 70 MPa (10 000 psi)
  • Bench mount design
  • Screw pressure for pressure generation
  • 2700G and DUT can be connected without the use of tools or PTFE tape
  • Operates with a wide range of fluids (Viton seals standard, EP seals available)

P5515 Hydraulic Pressure Comparator

  • Pressure range: 0 to 140 MPa (20 000 psi)
  • Built-in priming pump for large volume applications and system priming
  • High-quality screw press for pressure generation and fine control
  • Clear acrylic reservoir for visibility of fluid level and quality
  • Built-in drain plug for easy removal of fluid
  • Sturdy carrying case with lid
  • Operational with a wide range of fluids (Viton seals standard, EP seals available)
  • 2700G and DUT can be connected without the use of tools or PTFE tape
Model Range Resolution Uncertainty (k=2) Burst
pressure		 Media
compatibility
2700G-BG100K –15 psi to 15 psi
–100 kPa to 100 kPa		 0.001 psi
0.0001 bar		 Positive pressure
± 0.02 % FS Vacuum
± 0.05 % FS		 45 psi
0.3 MPa		 Note 1
2700G-BG200K –15 to 30 psi
–100 kPa to 200 kPa		 0.001 psi
0.0001 bar		 90 psi
0.6 MPa		 Note 1
2700G-BG700K –12 psi to 100 psi
–80 kPa to 700 kPa		 0.01 psi
0.0001 bar		 1000 psi
7 MPa		 Note 2
2700G-BG2M –12 psi to 300 psi
–80 kPa to 2 MPa		 0.01 psi
0.001 bar		 2000 psi
14 MPa		 Note 2
2700G-BG3.5M –12 psi to 500 psi
–80 kPa to 3.5 MPa		 0.01 psi
0.001 bar		 2000 psi
14 MPa		 Note 2
2700G-BG7M –12 to 1000 psi
–80 kPa to 7 MPa		 0.1 psi
0.001 bar		 10 000 psi
70 MPa		 Note 2
2700G-G20M 0 to 3000 psi
0 to 20 MPa		 0.1 psi
0.01 bar		 10 000 psi
70 MPa		 Note 3
2700G-G35M 0 to 5000 psi
0 to 35 MPa		 0.1 psi
0.01 bar		 10 000 psi
70 MPa		 Note 3
2700G-G70M 0 to 10 000 psi
0 to 70 MPa		 1 psi
0.01 bar		 15 000 psi
100 MPa		 Note 3
Uncertainty includes linearity, hysteresis, repeatability, resolution, reference uncertainty, 1 year long term stability, and temperature effects from 18 to 28 °C.
For temperatures from 0 °C to 18 °C and 28 °C to 50 °C, add 0.003% FS/°C
Media compatibility:
Note 1: Any clean, dry non-corrosive gas
Note 2: Any liquids or gases compatible with 316 stainless steel
Note 3: Any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel
Mechanical specifications
Dimensions (HxWxD) 12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in)
Pressure connection ¼ in NPT Male
Housing/weight Cast ZNAL/0.56 kg (1.22 lb)
Display 5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 %
Power Three AA alkaline batteries
Battery life 75 hours



Model Name Description
2700G-BG100K

Reference Pressure Gauge, -15 to 15 psi (-100 to 100 kPa)
2700G-BG200K

Reference Pressure Gauge, -15 to 30 psi (-100 to 200 kPa)
2700G-BG700K

Reference Pressure Gauge, -12 to 100 psi (-80 to 700 kPa)
2700G-BG2M

Reference Pressure Gauge, -12 to 300 psi (-80 kPa to 2 MPa)
2700G-BG3.5M

Reference Pressure Gauge, -12 to 500 psi (-80 kPa to 3.5 MPa)
2700G-BG7M

Reference Pressure Gauge, -12 to 1000 psi (-80 kPa to 7 MPa)
2700G-G20M

Reference Pressure Gauge, 0 to 3000 psi (0 to 20 MPa)
2700G-G35M

Reference Pressure Gauge, 0 to 5000 psi (0 to 35 MPa)
2700G-G70M

Reference Pressure Gauge, 0 to 10 000 psi (0 to 70 MPa)
700G/TRACK

Data Logging Software
P5510-2M

Pneumatic Comparison Test Pump
P5513-20M

Pneumatic Comparison Test Pump
P5514-70M

Hydraulic Comparison Test Pump, Viton Seals

Pressure range 0 to 10 000 psi (70 MPa)
P5514-70M-EP

Hydraulic Comparison Test Pump, Ethylene Propylene Seals

Pressure range 0 to 10 000 psi (70 MPa)
P5515-140M

Hydraulic Comparison Test Pump, Viton Seals

0 to 20 000 psi (140 MPa)
P5515-140M-EP

Hydraulic Comparison Test Pump, Ethylene Propylene Seals

0 to 20 000 psi (140 MPa)
P5510-2700G-1

P5510 Pneumatic Calibrator, 2 MPa (300 psi), 1 Gauge  (2700G-BG2M)
P5510-2700G-3

P5510 Pneumatic Calibrator, 2 MPa (300 psi), 3 Gauges (2700G-BG2M, 2700G-BG700K, 2700G-BG100K)
P5513-2700G-1

P5513 Pneumatic Calibrator, 20 MPa (3000 psi), 1 Gauge (2700G-G20M)
P5513-2700G-3

P5513 Pneumatic Calibrator, 20 MPa (3000 psi), 3 Gauges (2700G-G20M, 2700G-BG7M, 2700G-BG700K)
P5514-2700G-1

P5514 Hydraulic Calibrator, 70 MPa (10 000 psi), 1 Gauge (2700G-G70M)
P5514-2700G-3

P5514 Hydraulic Calibrator, 70 MPa (10 000 psi), 3 Gauges (2700G-G70M, 2700G-G20M, 2700G-BG7M)
P5515-2700G-1

P5515 Hydraulic Calibrator, 70 MPa (10,000 psi), 1 Gauge (2700G-G70M)
P5515-2700G-3

P5515 Hydraulic Calibrator, 70 MPa (10,000 psi), 3 Gauges (2700G-G70M, 2700G-G20M, 2700G-BG7M)
P5510/14-2700G-4

P5510/P5514 Pressure Calibrator, with 4 Gauges (2700G-G70M, 2700G-BG7M, 2700G-BG2M, 2700G-BG200K)
P5510/14-2700G-6

P5510/P5514 Pressure Calibrator, with 6 Gauges (2700G-G70M, 2700G-G20M, 2700G-BG7M, 2700G-BG2M, 2700G-BG700K, 2700G-BG100K)
P5510/15-2700G-6

P5510/P5515 Pressure Calibrator, with 6 Gauges (2700G-G70M, 2700G-G20M, 2700G-BG7M, 2700G-BG2M, 2700G-BG700K, 2700G-BG100K)
P5510/15-2700G-4

 P5510/P5515 Pressure Calibrator, with 4 Gauges (2700G-G70M, 2700G-BG7M, 2700G-BG2M, 2700G-BG200K)
P5510-2700G-3/C

P5510 Pneumatic Calibrator, 2 MPa (300 psi), 3 Gauges Accredited
P5510-2700G-1/C

P5510 Pneumatic Calibrator, 2 MPa (300 psi), 1 Gauge Accredited
P5510-2700G-3/C

P5510 Pneumatic Calibrator, 2 MPa (300 psi), 3 Gauges Accredited
P5513-2700G-1/C

P5513 Pneumatic Calibrator, 20 MPa (3000 psi), 1 Gauge Accredited
P5513-2700G-3/C

P5513 Pneumatic Calibrator, 20 MPa (3000 psi), 3 Gauges Accredited
P5514-2700G-1/C

P5514 Hydraulic Calibrator, 70 MPa (10,000 psi), 1 Gauge Accredited
P5515-2700G-1/C

P5515 Hydraulic Calibrator, 70 MPa (10,000 psi), 1 Gauge Accredited
P5515-2700G-3/C

P5515 Hydraulic Calibrator, 70 MPa (10,000 psi), 3 Gauges Accredited
2700G-BG100K/C

Reference Pressure Gauge, -15 to 15 psi (-100 to 100 kPa) - with Accredited Calibration
2700G-BG200K/C

Reference Pressure Gauge, -15 to 30 psi (-100 to 200 kPa) - with Accredited Calibration
2700G-BG700K/C

Reference Pressure Gauge, -12 to 100 psi (-80 to 700 kPa) - with Accredited Calibration
2700G-BG2M/C

Reference Pressure Gauge, -12 to 300 psi (-80 kPa to 2 MPa) - with Accredited Calibration
2700G-BG3.5M/C

Reference Pressure Gauge, -12 to 500 psi (-80 kPa to 3.5 MPa) - with Accredited Calibration
2700G-BG7M/C

Reference Pressure Gauge, -12 to 1000 psi (-80 kPa to 7 MPa) - with Accredited Calibration
2700G-G20M/C

Reference Pressure Gauge, 0 to 3000 psi (0 to 20 MPa) - with Accredited Calibration
2700G-G35M/C

Reference Pressure Gauge, 0 to 5000 psi (0 to 35 MPa) - with Accredited Calibration
2700G-G70M/C

Reference Pressure Gauge, 0 to 10 000 psi (0 to 70 MPa) - with Accredited Calibration
P5510/14-2700G-4/C

P5510/P5514 Pressure Calibrator, with 4 Gauges Accredited
P5510/14-2700G-6/C

P5510/P5514 Pressure Calibrator, with 6 Gauges Accredited
P5510/15-2700G-4/C

P5510/P5515 Pressure Calibrator, with 4 Gauges Accredited
P5510/15-2700G-6/C

P5510/P5515 Pressure Calibrator, with 6 Gauges Accredited
