Fluke 5080A Megohm Meter Calibration Option
The 5080A Megohm Meter Calibration Option enables the 5080A Multi-Product Calibrator to calibrate the high voltage output of megohm meters and other portabl
Megohm meter calibration option for the 5080A Multi-Product Calibrator

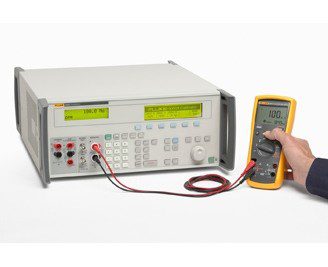

The 5080A Megohm Meter Calibration Option enables the 5080A Multi-Product Calibrator to calibrate the high voltage output of megohm meters and other portable and bench insulation testers. It sources high ohms, high voltage resistors up to 18 G Ohms. It also measures high voltage outputs.
Operation is easy
You access the 5080A Megohm Meter Calibration Option's capabilities simply by selecting "MEG" mode on the calibrator's front panel. All outputs are conveniently located on the calibrator's output block, to make hook-ups easy and to minimize the errors contributed by cabling.
| Insulation Resistance | Ranges: 10 kohm to 10 Gohm, plus 18 Gohm singe value
Best 1-year specification: 0.2% |
| Insulation Voltage | Ranges: 0 V to 1575 V dc peak
Best 1-year specification: 1% |
| Continuity Resistance | Ranges: 1 ohm to 5.9 kohm (16 values)
Best 1-year specification: 0.1% |
| Continuity Current | Ranges: 700 mA max
Best 1-year specification: 1.2% |
Model Name |
Description |
|---|---|
| 5080A->5080A/MEG | Upgrade 5080A to 5080A/SC Installable only at Fluke service centers for extra installation and calibration cost. |
